DP Resin-Free Heat-Resistant Color Paste Series
Product Overview
Resin-free heat-resistant color pastes featuring inorganic high-temperature pigments (50% loading, polymer dispersant + DOTP carrier). Color stability at 800–1000°C for ceramic inks, enamels, glass, and high-temperature/exhaust coatings.
Technical Specifications
Carrier: Polymer dispersant 25% + DOTP 25% Pigment loading: 50% Processing temperature: ~350°C (carrier) Carrier behavior: Fully carbonizes above 400°C Pigment service temperature: 800-1000°C Average / limit heat resistance: >500°C / 1000°C Packaging: 1 kg / 5 kg / 20 kg
Overview
TheDP seriesis aresin-free, heat-resistant color pastebuilt aroundinorganic high-temperature pigments. It uses a ceramic-ink-grade polymer dispersant (25%) together withDOTP (25%)as the carrier, with50% pigment loading. Although the carrier is designed for processing at approximately 350°C and fully carbonizes above 400°C, inorganic pigments retain their original color after firing—providing an average service temperature exceeding 500°C and an upper limit of1000°C.
How It Works
DP follows the principle of ceramic and enamel coloration. During high-temperature firing, the organic dispersant and DOTP carrier burn out and carbonize completely, leaving stable inorganic pigments (complex oxides, spinels, and sulfides) bonded into the ceramic, glass, or coating. The result is a durable, heat-stable color that does not fade even after exposure to 800–1000°C.
Key Features
- Exceptional heat resistance— average above 500°C, up to 1000°C
- Inorganic pigment chemistry— Complex oxides, spinels, and sulfides
- Resin-free formula— polymer dispersant 25% + DOTP 25%, pigment at 50%
- Color retention after firingCarrier carbonizes, pigment remains stable
- High UV and weather resistance— Built for outdoor and extreme environments
- Versatile for ceramics, enamel, glass, and high-temperature coatings
- Available in 1kg, 5kg, and 20kg packaging

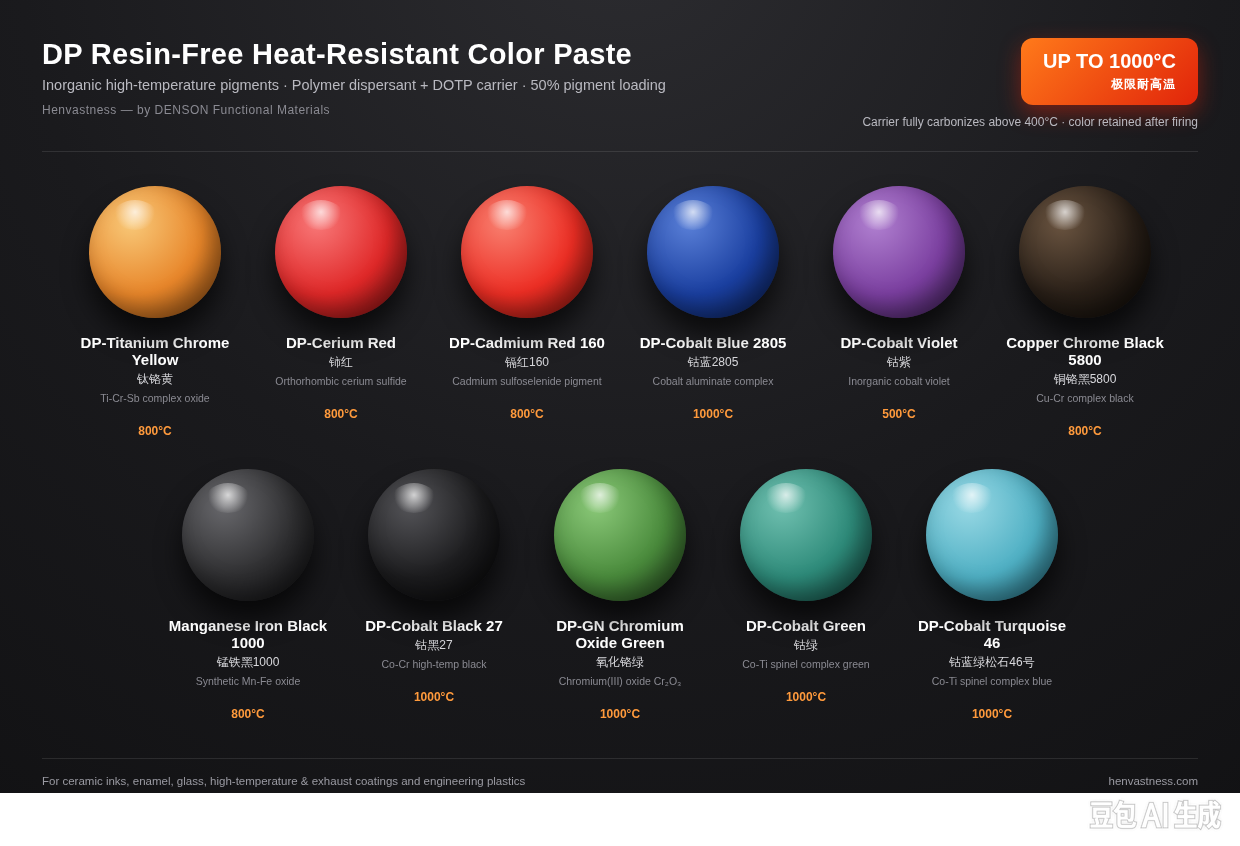

Color Range (11 Models)
| Model | Color | Chemistry | Heat Resistance | |---|---|---|---| | DP-Titanium Chrome Yellow | Yellow-orange | Ti-Cr-Sb complex oxide | 800°C | | DP-Cerium Red | Red | Orthorhombic cerium sulfide | 800°C | | DP-Cadmium Red 160 | Bright red | Cadmium sulfoselenide | 800°C | | DP-Cobalt Blue 2805 | Deep blue | Cobalt aluminate complex | 1000°C | | DP-Cobalt Violet | Violet | Inorganic cobalt violet | 500°C | | Copper Chrome Black 5800 | Brown-black | Cu-Cr complex black | 800°C | | Manganese Iron Black 1000 | Gray-black | Synthetic Mn-Fe oxide | 800°C | | DP-Cobalt Black 27 | Black | Co-Cr high-temp black | 1000°C | | DP-GN Chromium Oxide Green | Green | Chromium(III) oxide Cr₂O₃ | 1000°C | | DP-Cobalt Green | Blue-green | Co-Ti spinel complex green | 1000°C | | DP-Cobalt Turquoise 46 | Turquoise | Co-Ti spinel complex blue | 1000°C |
Applications & Materials
- Digital ceramic inks and tile decoration
- Porcelain / vitreous enamel
- Glass and glass-ceramic coloring
- High-temperature-resistant coatings
- BBQ grills, stoves, fireplaces, and chimneys
- Engine, exhaust manifold, and muffler coatings
- Brake pads and friction materials
- Kiln furniture and refractory marking
- Cookware and Nonstick Coatings
- High-temperature engineering plastics(PEEK, PI, LCP, PTFE)
- Powder coatings and ceramic 3D printing
- Aerospace and industrial heat-exposed components
Typical Specifications
| Property | Value | |---|---| | Carrier | Polymer dispersant 25% + DOTP 25% | | Pigment loading | 50% | | Processing temperature | ~350°C (carrier) | | Carrier behavior | Fully carbonizes above 400°C | | Pigment service temperature | 800–1000°C | | Average / limit heat resistance | >500°C / 1000°C | | Form | Paste | | Packaging | 1kg / 5kg / 20kg |
Frequently Asked Questions
How can a color paste withstand 1000°C?The organic carrier is not designed to survive; it carbonizes during firing. The inorganic pigments (complex oxides and spinels) remain chemically stable and retain their color at 800–1000°C.
What is the difference between DP and standard color pastes?Standard organic pigments degrade or fade at high temperatures. DP uses inorganic high-temperature pigments designed specifically for ceramics, enamel, glass, and heat-resistant coatings.
Which industries use DP heat-resistant pastes?Used in ceramic inks, enamels, glass, BBQ and stove finishes, engine/exhaust coatings, brake components, cookware, and high-temperature engineering plastics.
Which carrier does DP use?A resin-free ceramic-ink polymer dispersant system (25%) combined with DOTP (25%) achieves 50% pigment loading and excellent processability.
What packaging options are available?DP is supplied in 1 kg, 5 kg, and 20 kg containers.
How do I request samples or technical support?Contact the Henvastness team viaContact UsFor samples, firing guidance, and custom color matching.
