WT Water-Soluble, Resin-Free Color Paste Series

Overview

TheWT seriesis a pure waterborne, resin-free pigment paste line engineered for water-based coating systems. It disperses cleanly in bothPure Water Formulationsandwater/solvent co-solvent systems, delivering strong chemical resistance, broad binder compatibility, and stable color development.

Grades with a"T" suffixUses nano-scale particles for high transparency, excellent heat resistance, and superior lightfastness. The entire product line is eco-friendly and non-toxic.

Key Features

• Pure waterborne and resin-free— No free resin, maximum formulation flexibility
• Dual-system compatibility— Works in pure water and water/solvent co-solvent systems
• High chemical resistance— Stable in demanding coating environments
• Nano-transparent T-grades— Ultra-fine particle size for transparent, clean shades
• High heat resistance— up to 240°C for most grades
• Excellent lightfastness— up to grade 8 (Blue Wool scale)
• Migration resistance level 5— no bleeding or color transfer
• Eco-friendly & non-toxic— Low VOC, compliant with modern environmental standards

Color Range

The WT Series offers20 standard modelsAvailable in red, yellow, orange, blue, green, violet, black, and white families. Refer to the two color charts below for each model's full range, pigment index (CI), pigment loading, heat resistance, and lightfastness.

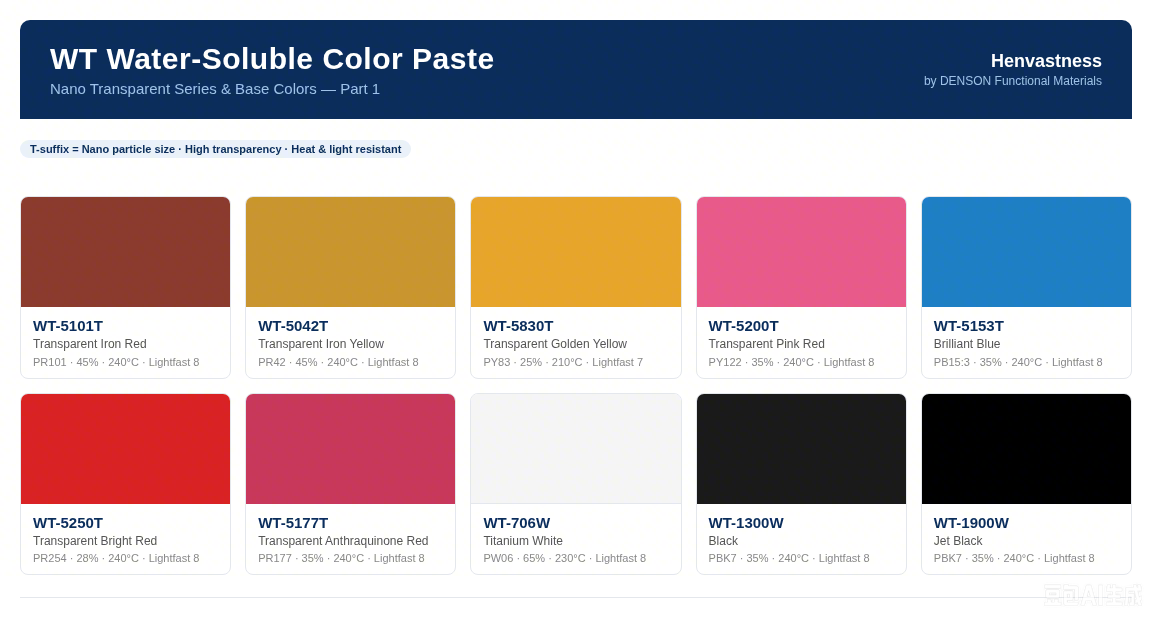

Part 1 — Nano Transparent Series & Base Colors (10 models):WT-5101T, WT-5042T, WT-5830T, WT-5200T, WT-5153T, WT-5250T, WT-5177T (nano T-grades); WT-706W Titanium White, WT-1300W Black, WT-1900W Jet Black.

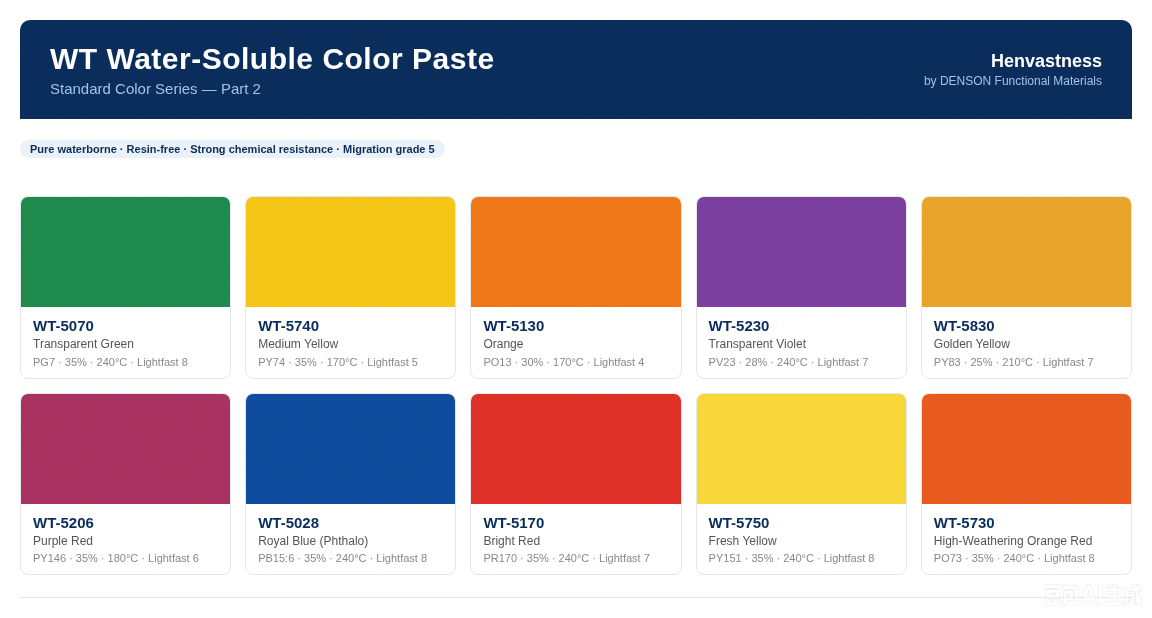

Part 2 — Standard Color Series (10 models):WT-5070, WT-5740, WT-5130, WT-5230, WT-5830, WT-5206, WT-5028, WT-5170, WT-5750, WT-5730.

Applications

• Water-based acrylic coatings
• Water-based metal baking enamels
• Water-based glass coatings
• Water-based wood coatings
• Water-based plastic coatings
• Water-based floor coatings
• Automotive Refinish Coatings
• Automotive OEM coatings

Typical Specifications

| Property | Value | |---|---| | Carrier system | Pure water (resin-free) | | Pigment loading | 25%–65% (color-dependent) | | Heat resistance | 170–240°C (grade-dependent) | | Lightfastness | Grade 4–8 (Blue Wool) | | Migration resistance | Grade 5 | | Particle size | Standard / Nano (T-suffix) | | VOC | Low | | Form | Free-flowing paste |

Usage Recommendations

For optimal gloss and compatibility, pre-dilute the color paste with deionized water at a1:1 or 1:2 aspect ratio, then gradually add it to the base while stirring. Always perform a laboratory compatibility test before full-scale production.

Frequently Asked Questions

The "T" suffix in WT grades stands for "Tempered." It indicates that the material has undergone a tempering heat treatment process to enhance its toughness and reduce brittleness after hardening.T-grades use nano-scale pigment particles for high transparency, finer dispersion, and superior heat and light resistance. Choose a T-grade when you need transparent or clean, vivid shades.

Yes, WT color paste can be used in both pure-water and water/solvent systems.Yes. The WT series is designed for pure-water formulations and systems where water and co-solvents coexist, without shock or flocculation.

What are the heat and light resistance properties of WT pastes?Most grades withstand temperatures up to 240°C and achieve lightfastness grade 8. Exact values vary by pigment — refer to the color chart for each model.

How should WT color paste be incorporated into a formulation?Pre-dilute with deionized water at 1:1 or 1:2, then add slowly while stirring for optimal gloss and compatibility.

Where can I request WT samples or color matching?Contact the Henvastness team viaContact UsFor samples, technical data sheets, and custom color matching.
